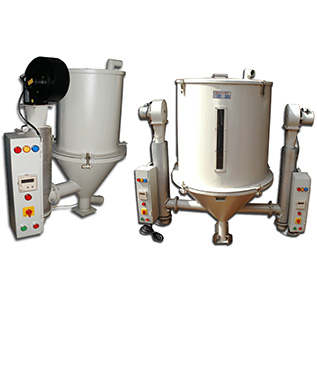

Hopper Dryer
ELECTROTECH Hopper Dryer is designed & manufactured to provide unmatched performance in heating to serve the plastic processing industries. The heater is fitted with metal sheathing and powerful blower to extract maximum heat from the heater. The generated hot air is blown and circulated in the hopper. The hot air absorbs moisture from the feed and it is blown out. The hot air temperature is controlled and displayed by the digital temperature controller.
| MODELS | SD-25 | SD-50 | SD-100 | SD-150 | SD-200 |
| CAPACITY | 25kg | 50kg | 100kg | 150kg | 200kg |
| HEATING LOAD | 3.75KW | 4.5KW | 5KW | 6KW | 6KW |
| BLOWER LOAD | 145W,
1PHASE, |
160W, 3PHASE, | 200W, 3PHASE, | 240W, 3PHASE, | 250W, 3PHASE, |
| DIMENSION(Approx.) | 800X650 | 1110X780 | 1150X950 | 1250X1050 | 1250X1150 |
FEATURES:-
- Uniform heat & air circulations
- Low power consumption
- Noise less operation
- Increased production output.
- Heavy duty industrial construction.
- Heater range from 50˚C to 150˚
- Better quality productions.
- Higher temperature models are also available on request
