FFS MACHINE

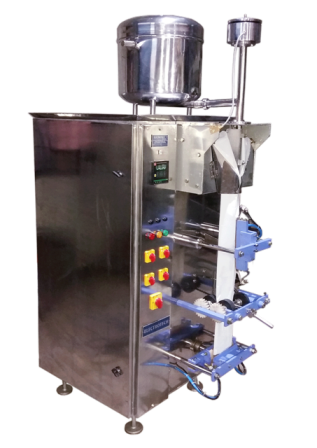

LIQUID PACKING- VIRTICAL FORM FILL AND SEAL MACHINE
- OF POUCHES: – 1800 to 2400 no.s per Hour
- FILM WIDTH: – 320mm ±5mm – LDPE/ Multi layer or single layer 50-100 Microns.
| Volume | Width of pouch | Length of pouch |
| 200 | 150 | 100 |
| 500 | 150 | 155 |
| 1000 | 150 | 230 |
- APPLICATION- Milk, Lassi, Juice, Mineral water, Liquor Pouches
- DIMENSION OF MACHINE:- L-700X W-750X H-1800 Weight 400kg (Fully covered SS Doors & Contact parts SS304.
- POWER:- Stabilized single phase 230VX 1 Kw.
- ACCESSORIES:- Date/Batch coder, Counter, Photo mask registration.
- FUNCTION:- Gravity flow with 20L tanks Float control, Impulse sealing, PLC Controlled with HMI, Mechanical cam operated 0.5HP motor.
- INJECTION:- Magnetic injection – Gravity flow for all free flow liquids.
- VFD Controlled mono block pump for oil packing @ 15-20 pouches /min for 250 to 1000ml range
Description
LIQUID PACKING- VIRTICAL FORM FILL AND SEAL MACHINE
- OF POUCHES: – 1800 to 2400 no.s per Hour
- FILM WIDTH: – 320mm ±5mm – LDPE/ Multi layer or single layer 50-100 Microns.
| Volume | Width of pouch | Length of pouch |
| 200 | 150 | 100 |
| 500 | 150 | 155 |
| 1000 | 150 | 230 |
- APPLICATION- Milk, Lassi, Juice, Mineral water, Liquor Pouches
- DIMENSION OF MACHINE:- L-700X W-750X H-1800 Weight 400kg (Fully covered SS Doors & Contact parts SS304.
- POWER:- Stabilized single phase 230VX 1 Kw.
- ACCESSORIES:- Date/Batch coder, Counter, Photo mask registration.
- FUNCTION:- Gravity flow with 20L tanks Float control, Impulse sealing, PLC Controlled with HMI, Mechanical cam operated 0.5HP motor.
- INJECTION:- Magnetic injection – Gravity flow for all free flow liquids.
- VFD Controlled mono block pump for oil packing @ 15-20 pouches /min for 250 to 1000ml range
